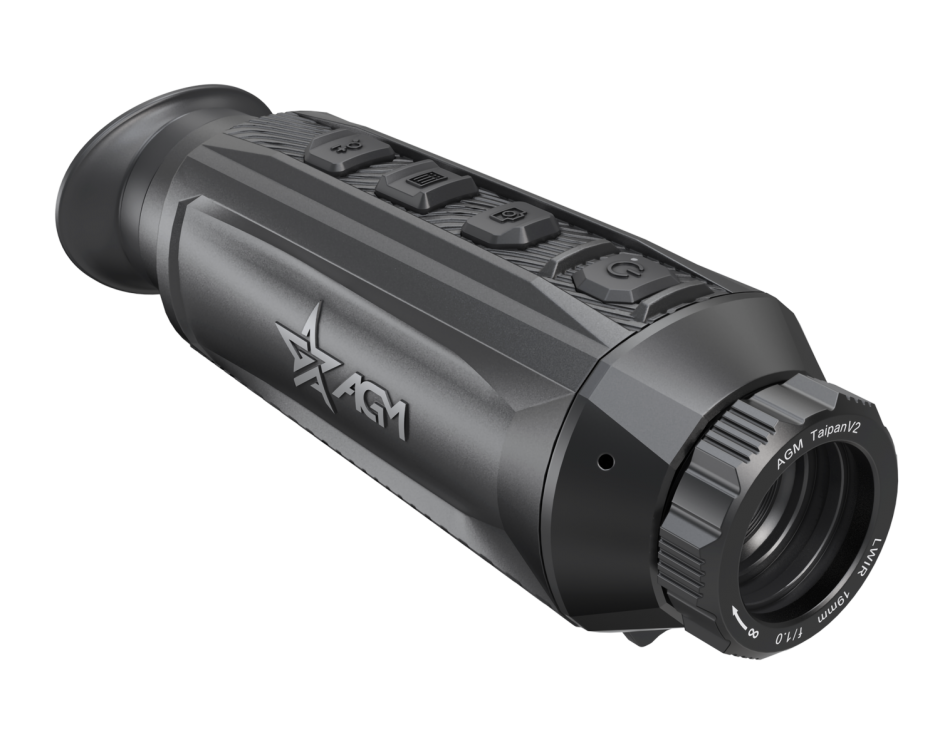

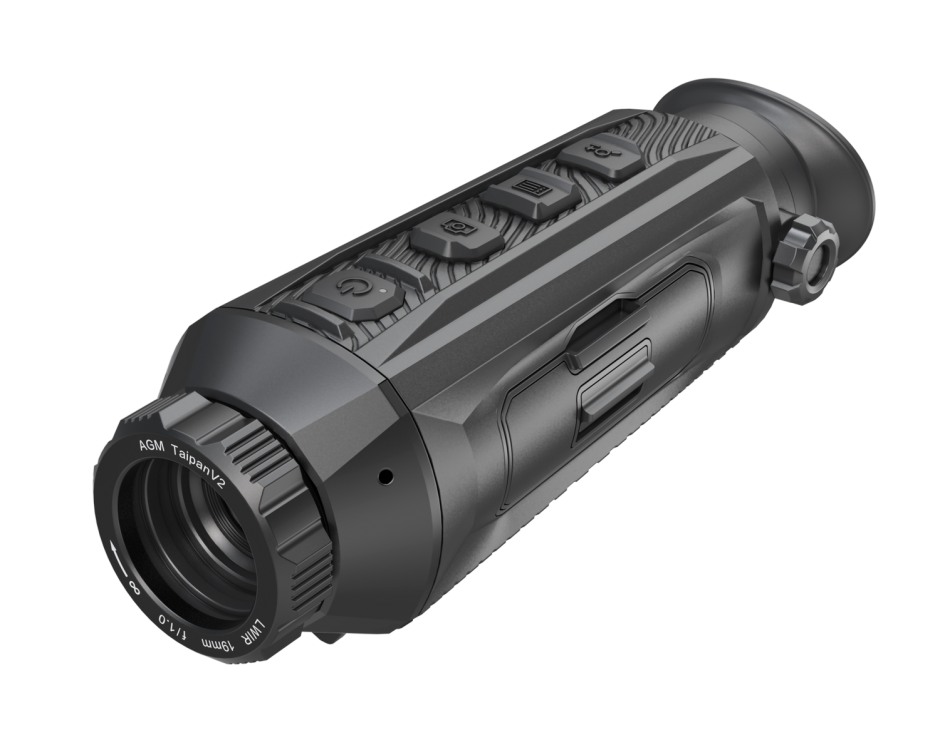

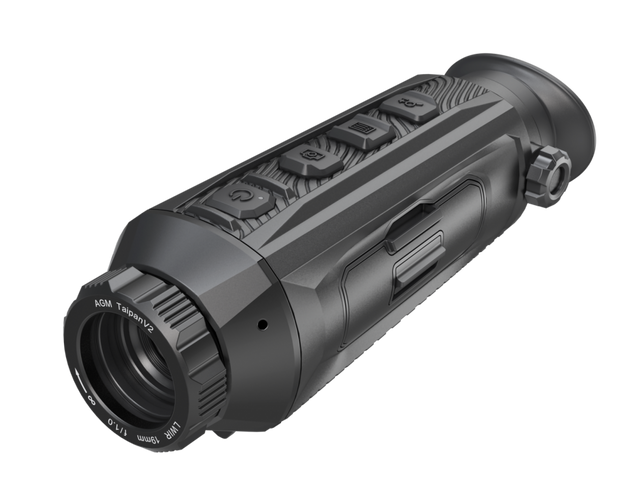

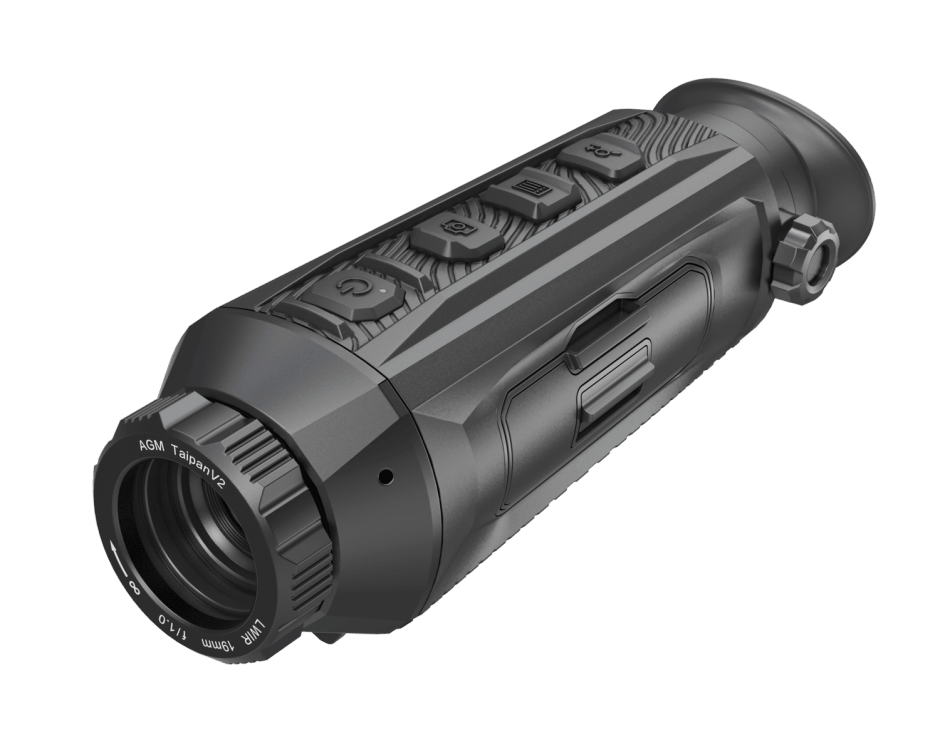

AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192
AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192

AGM Taipan TM10-256 Thermal Imaging Monocular (25hz) | 12 micron, 256x192

AGM Global Vision

Regular price $549.00
Regular price Sale price $549.00
Shipping calculated at checkout.

The Taipan TM10-256 handheld observational thermal monocular is equipped with a 256×192 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.

Mode Switch:
Device supports pallet switch and distance measurement.

Storage:
Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.

Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

Product Specs

Palettes: Black Hot, White Hot, Red Hot, Fusion

Working Temperature: -20°C to 55°C (-4°F to 131°F)

Interface: USB Type-C

Pixel Interval: 12 μm

Multi Language menu: Yes

Drop Test Height: 1.5 m (4.9 feet)

Digital Magnification: 1x - 8x

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband: 8 μm to 14 μm

FFC (Flat Field Correction): Auto, Manual, External Correction

Highest Temperature Spot Tracking: Yes

Standby Mode: Yes

Refresh rate: Sensor 25 Hz / OLED 50 Hz

Aperture: F1.0

Resolution: 256×192

Detection Range (6' object): 460m/yd

NETD: Less than 35 mk (@25°C), F#=1.0

Lens (focal length): 10 mm

Power: 5 VDC/2 A, 1.5 W

Field of view (H × X): 18.00° × 13.55° (H × V)

Digital zoom: 1×, 2×, 4×, 8×

Monitor: 720×540, 0.2 inch, LCOS

Storage: Built-in memory module (8 GB)

Record Video: On-board video recording

Capture Snapshot: Yes

Battery Type: Built-in rechargeable Lithium battery

Wi-Fi: Yes

CVBS Output: Yes (via USB)

Battery Operating Time: Up to 8 hours continuous running (with Wi-Fi hotspot function off)

Battery Capacity Display: Yes

Weight: 260 g (0.57 lb)

Overall Dimensions: 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)

Protection Level: IP67

Magnification: 1x
