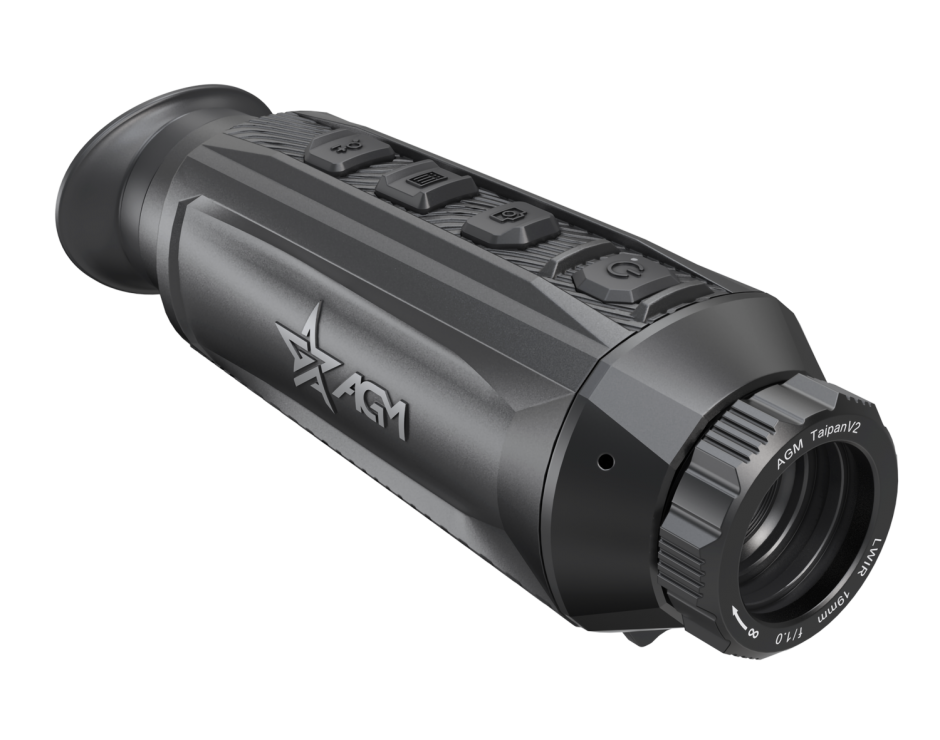

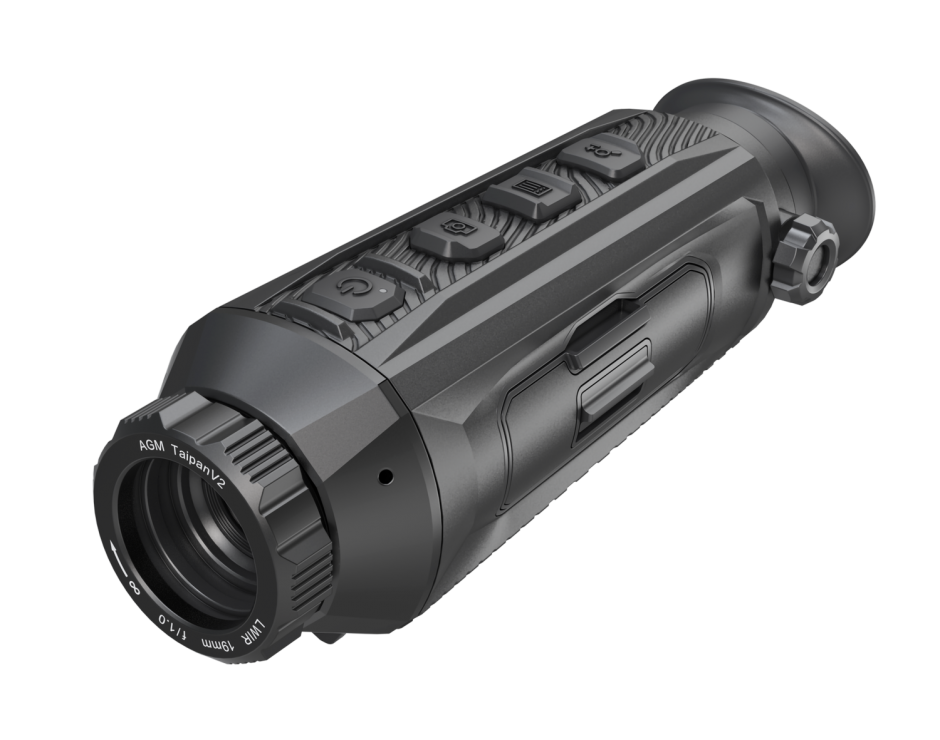

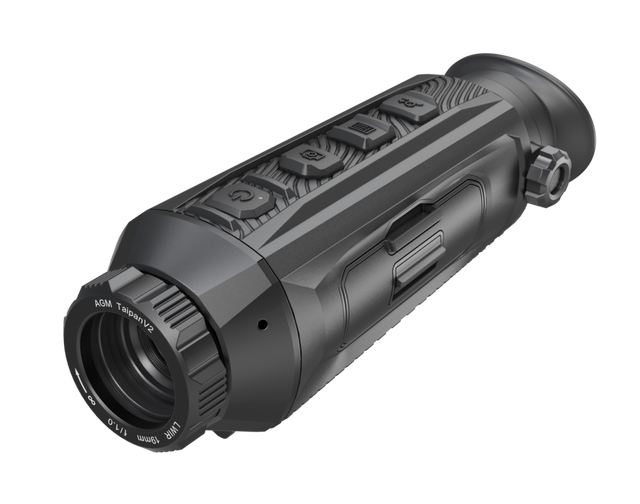

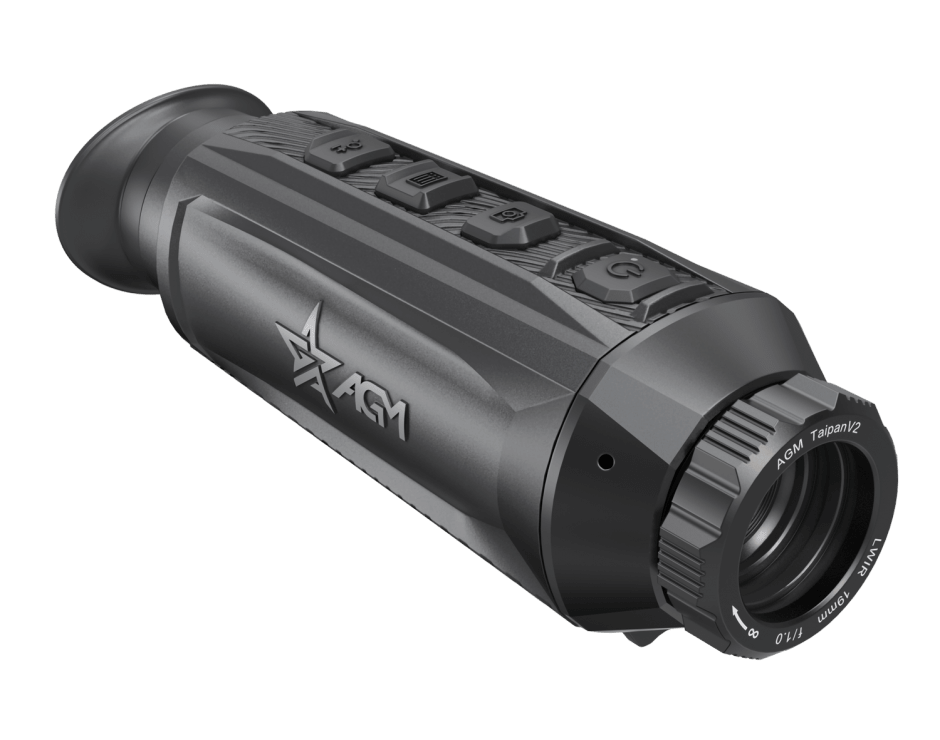

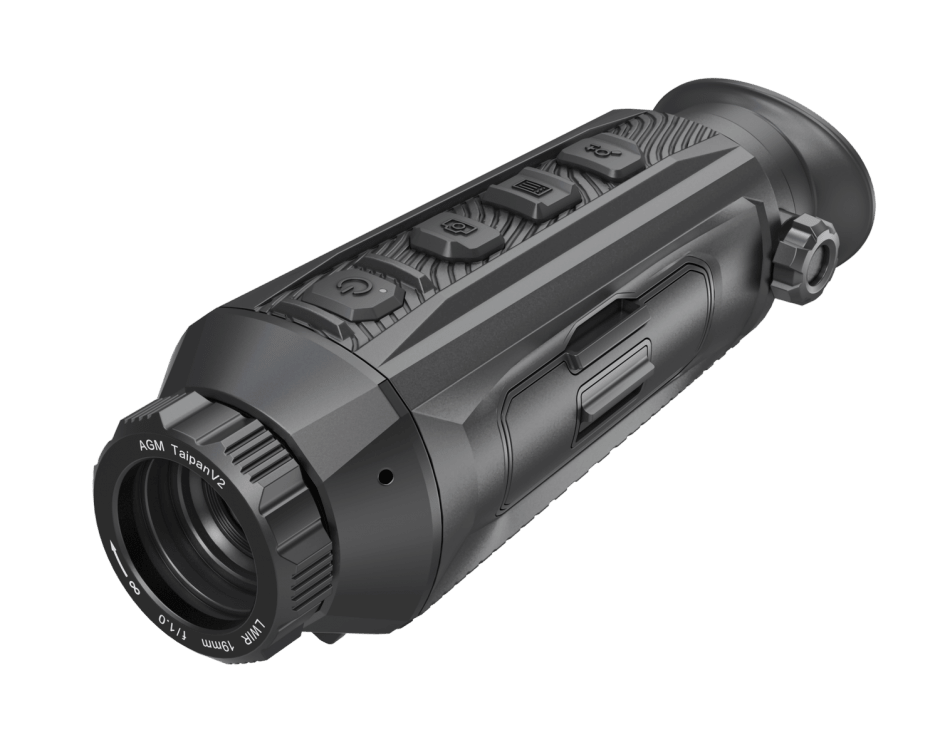

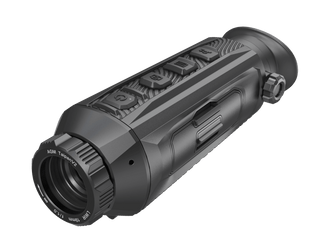

AGM Taipan V2 25-384 Thermal Imaging Monocular 20mK, 12 Micron, 384x288 (50 Hz)
AGM Taipan V2 25-384 Thermal Imaging Monocular 20mK, 12 Micron, 384x288 (50 Hz)

AGM Taipan V2 25-384 Thermal Imaging Monocular 20mK, 12 Micron, 384x288 (50 Hz)

AGM Global Vision

Regular price $1,595.00
Regular price $1,795.00 Sale price $1,595.00
Shipping calculated at checkout.

The AGM Taipan thermal monoculars have become synonymous with two words: Reliability and Simplicity. The Taipan TM25-384 is a great mid-level thermal monocular for anyone wanting to experience the capabilities of thermal imaging. Equipped with a highly advanced 12 micron 384x288 resolution thermal sensor and a 1280x960 LCOS display, it’s a great tool for hunters, campers and general outdoors enthusiasts who want or need to detect the presence of other animals or people in complete darkness. The range of uses include blood-tracking for hunters which aids in game retrieval, enhancing safety and awareness for hikers and camp sites and general nighttime curiosity. The Taipan TM25-384 still comes equipped with many of the most popular software features that experienced thermal users have come desire: up to 7.5 hours of battery life from an internal rechargeable battery, Wi-Fi hotspot, AGM Connect app compatibility for exporting and sharing images and videos, 2.5-20X magnification, 8GB of internal storage with no need for a memory card and a 5 Year Transferable Warranty.


Warning: California's Proposition 65


FUNCTIONS:

Distance Measurement:

The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.

Mode Switch:
Device supports pallet switch and distance measurement.

Storage:
Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.

Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.


  • 384×288 resolution, 12 μm, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 1280 × 960 resolution 0.4-inch LCOS display
  • Built-in rechargeable Lithium battery
  • More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
  • Wi-Fi hotspot
  • Type-C interface
  • 5-Year warranty

Product Specs

Palettes: Black Hot, White Hot, Red Hot, Fusion

Working Temperature: -20°C to 55°C (-4°F to 131°F)

Interface: USB Type-C

Pixel Interval: 12 μm

Multi Language menu: Yes

Drop Test Height: 1.5 m (4.9 feet)

Digital Magnification: 1x - 8x

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband: 8 μm to 14 μm

FFC (Flat Field Correction): Auto, Manual, External Correction

Highest Temperature Spot Tracking: Yes

Standby Mode: Yes

Refresh rate: Sensor 25 Hz / OLED 50 Hz

Aperture: F1.0

Resolution: 256×192

Detection Range (6' object): 460m/yd

NETD: Less than 35 mk (@25°C), F#=1.0

Lens (focal length): 10 mm

Power: 5 VDC/2 A, 1.5 W

Field of view (H × X): 18.00° × 13.55° (H × V)

Digital zoom: 1×, 2×, 4×, 8×

Monitor: 720×540, 0.2 inch, LCOS

Storage: Built-in memory module (8 GB)

Record Video: On-board video recording

Capture Snapshot: Yes

Battery Type: Built-in rechargeable Lithium battery

Wi-Fi: Yes

CVBS Output: Yes (via USB)

Battery Operating Time: Up to 8 hours continuous running (with Wi-Fi hotspot function off)

Battery Capacity Display: Yes

Weight: 260 g (0.57 lb)

Overall Dimensions: 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)

Protection Level: IP67

Magnification: 1x
