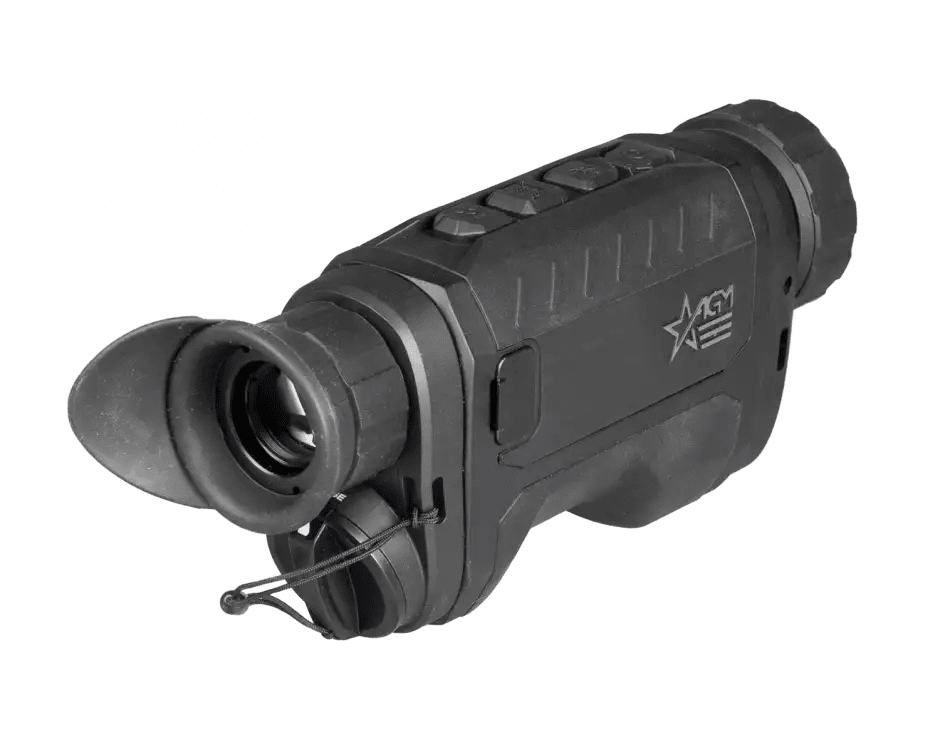

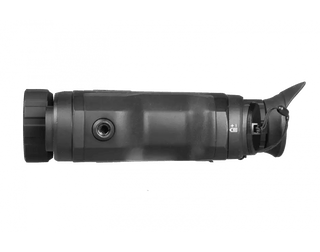

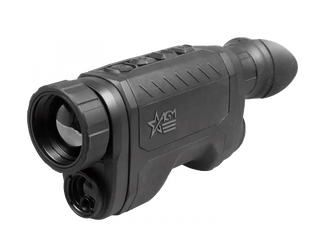

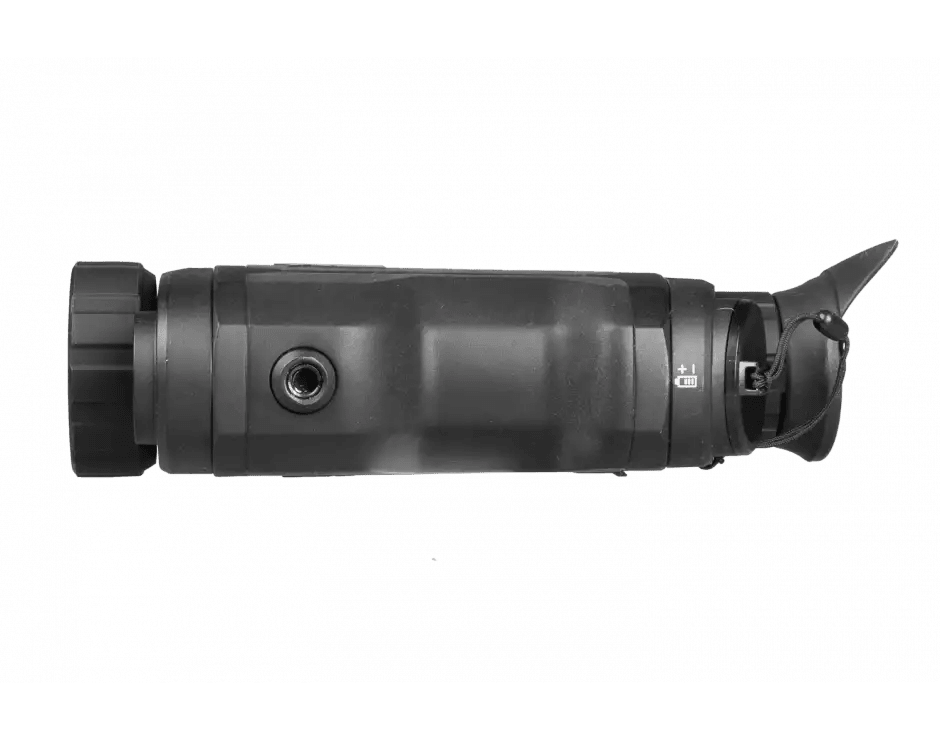

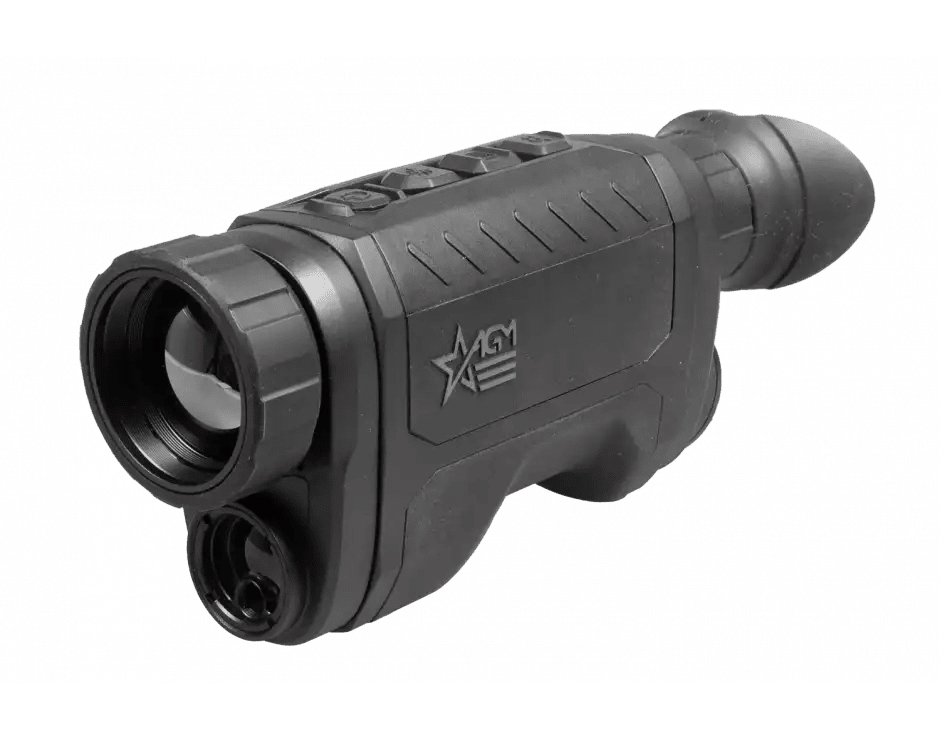

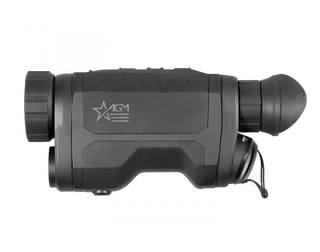

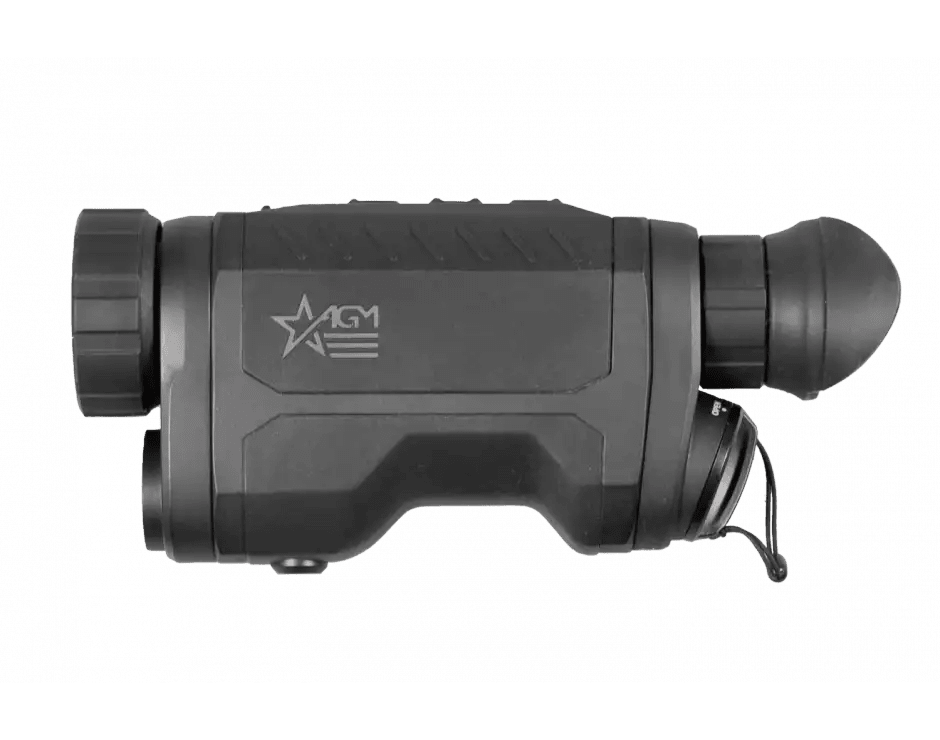

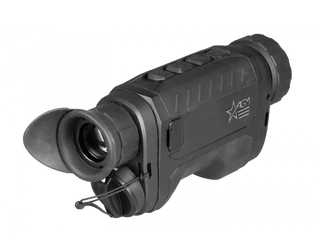

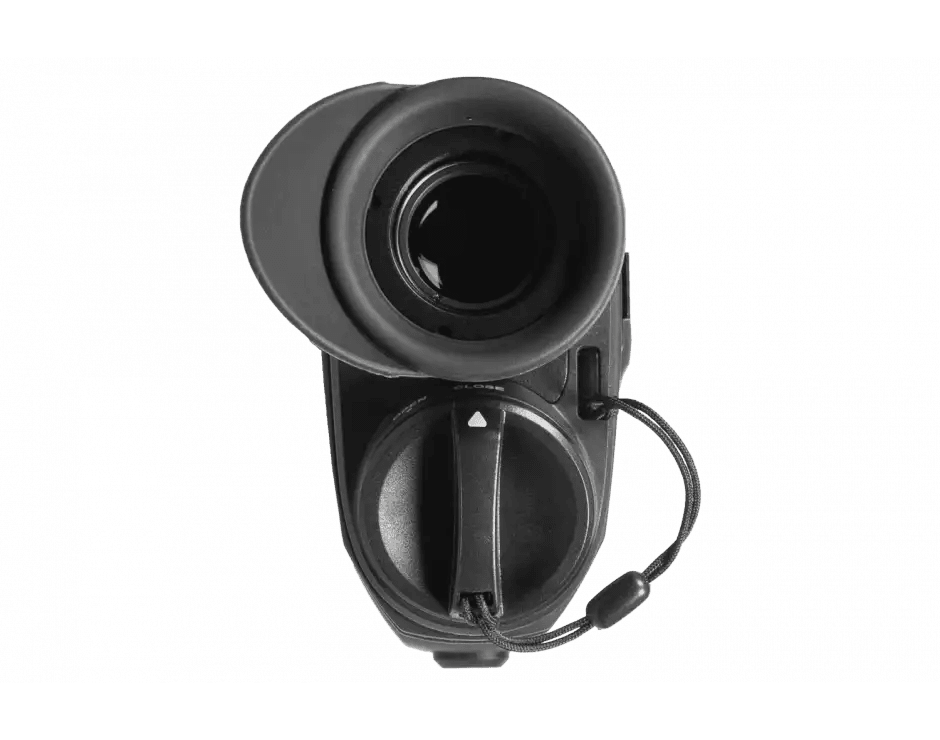

AGM Reach IR LRF 25x384 Thermal Imaging Monocular with built-in Laser Range Finder, 20mK, 12 Micron, 384x288 (50 Hz)
$1,696.00
$2,195.00
Save 23%
Authorized Dealer
100% Genuine Manufacturer Warranty
Secure Checkout
256-bit SSL Encryption
Free Shipping Over $500
Fast Ground Delivery
30-Day Returns
Hassle-Free Exchange
Product overview
About this product
Product description
The ReachIR is new premium handheld observational thermal monocular series. All models come equipped with twelve micron infrared detector and a 1024×768 OLED display, for improved color rendering. The ReachIR thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other important options include a 1,000-meter integrated laser rangefinder (LRF), robust body and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions.
New optimized image processing algorithms give thermal monocular highly optimized images and remarkable details. The ReachIRs built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video/audio recording and image capture. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking and different marine applications.
Warning: California's Proposition 65
- 384×288, 12-micron sensor
- Sub-20mK thermal sensitivity
- Fast 50 Hz imaging
- Built-in 1,000-meter laser rangefinder
- New optimized image processing algorithms
- 1x, 2x, 4x, 8x digital zoom
- 1024×768 resolution, 0.39-inch OLED display
- Vide/audio recording and image capture
- 64 GB built-in memory
- Wi-Fi hotspot
- Standby mode
- Replaceable and rechargeable 18650 Lithium battery
- Up to 4.5 hours continuous running
- Auto screen-off function
- Robust magnesium alloy housing
- Waterproof
- 5-Year Warranty
Characteristics
Refresh rate: 50 Hz
Resolution: 384x288
FOV: 10.5° × 7.9°
Downloads
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
$2,195.00
Quick Order
Add to cart
Specifications
External Power
5 VDC/2 A, USB Type-C interface. Supports external power supply.
Dimensions
181 × 53 × 85 mm (7.11 × 2.07 × 3.36 in)
Weight (w/o batteries)
386 g (0.85 Ib)
Palettes
Black Hot, White Hot, Red Hot, Fusion
Working Temperature
-30°C to 55°C (-22°F to 131°F)
Distance Measurement
Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Scene Mode
Jungle, Recognition
Picture In Picture Mode (PIP)
Yes
Hotspot
Yes
Video Recording
Yes
Audio Recording
Yes
Magnification
2.5x – 20x
Response Waveband
8 μm to 14 μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
384 × 288
Detection Range (6' object)
1,200 m/yd
Snapshot
Yes
Lens system
25 mm; F1.0
NETD
Less than 20 mK (25°C, F#=1.0)
Field of view (H × X)
10.5° × 7.9°
Digital zoom
1x, 2x, 4x, 8x
Diopter adjustment range
-5 to +3 dpt
Monitor
1024x768, 0.39 inch, OLED, 50 FPS
Storage
64 GB EMMC
Battery Type
One 18650 rechargeable battery (removable)
Battery Operating Time
Up to 4.5 hours continuous running (@25°C, WiFi and LRF off)
Battery Capacity Display
Yes
Protection Level
IP67 (Waterproof)
