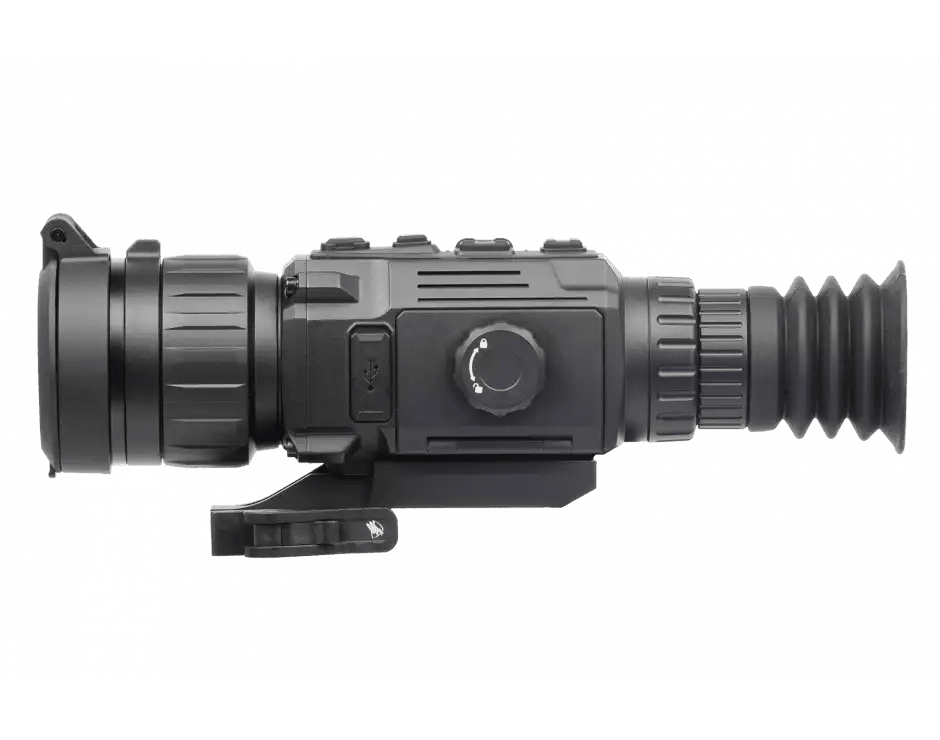

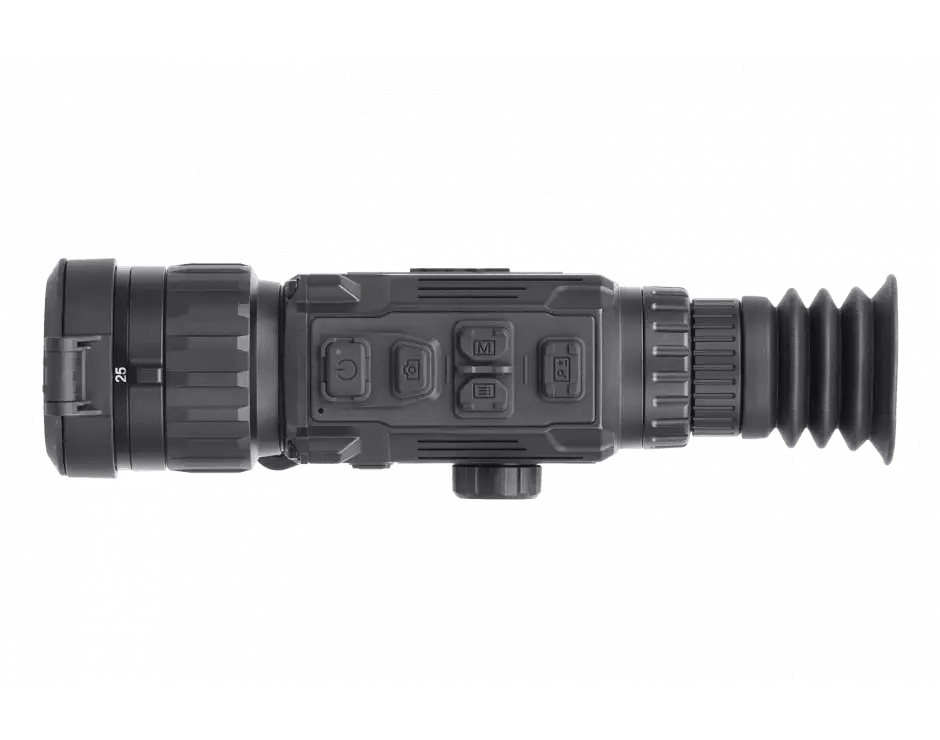

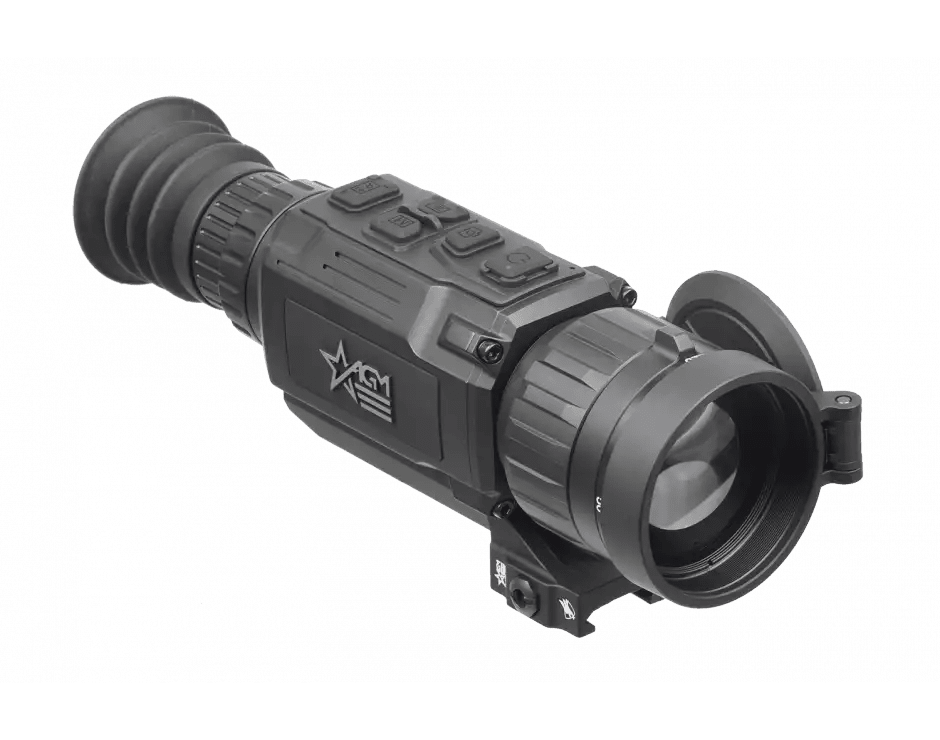

AGM Clarion 384  Dual Focus (25/50) Thermal Imaging Rifle Scope 20mK, 384x288 (50 Hz)
AGM Clarion 384  Dual Focus (25/50) Thermal Imaging Rifle Scope 20mK, 384x288 (50 Hz)
AGM Clarion 384  Dual Focus (25/50) Thermal Imaging Rifle Scope 20mK, 384x288 (50 Hz)
AGM Clarion 384  Dual Focus (25/50) Thermal Imaging Rifle Scope 20mK, 384x288 (50 Hz)
AGM Clarion 384  Dual Focus (25/50) Thermal Imaging Rifle Scope 20mK, 384x288 (50 Hz)

AGM Clarion 384 Dual Focus (25/50) Thermal Imaging Rifle Scope 20mK, 384x288 (50 Hz)

AGM Global Vision

Regular price $2,695.00
Regular price $2,995.00 Sale price $2,695.00
Shipping calculated at checkout.

The NEW Clarion dual base magnification thermal scope is one of the most technologically advanced thermal scopes in the world. The new Clarion scopes were meticulously designed to solve one of the biggest problems many night hunters face, which is selecting which lens size/sensor configuration will provide the optical base magnification and field of view for each hunter’s primary application. The Clarion alleviates this concern by incorporating a dual-lens optical system that has the ability to mechanically alternate between a 25mm lens or a 50mm lens. This feature alters the base magnification and field of view with no degradation of the image resolution!

With the Clarion 384, Night Hunters can now use the benefits of a 25mm lens with a base magnification of 2x and a wider FOV (10.5° × 7.9° or 53 ft @ 100 yards) then quickly switch to a 50mm lens with a base magnification of 4.5x and a narrower FOV (5.3° × 4.0° or 27 ft @ 100 yards) to really make sure your positive identification and shot placement is on point!

This dual base magnification flexibility is a new evolution in electro-optics and it will provide hunters with the versatility to optimize their optic for the specific geography and animals which they are hunting whether it be hogs in the eastern fields, or coyotes in the western deserts!

This new design is also paired with the most sensitive thermal sensor temperature rating in its class, coming it at a mind-bending sub-20 milikelvin.

Although the Clarion implements an advanced new optical system, they didn’t cut any corners with any of the design elements that hunters have come to expect from the AGM brand, including: high-quality 384x288 12-micron thermal sensor, removable rechargeable battery, up to 11 hours of continuous battery life on a single charge (2 batteries included), 10 internal reticle options, 5 different customizable zeroing profiles, 10 different brightness and contrast settings, wifi hotspot capability, built-in recording w/sound and image capture storage, AGM Connect app compatibility, 4 different reticle colors, 4 color palettes, 5 image sharpness settings and a high-quality American Defense mount which work well with both AR and bolt-action shooting platforms.


Warning: California's Proposition 65


  • Dual focus objective lens - 25mm/50mm
  • 12μm thermal detector
  • Superior sub-20 milikelvin thermal sensitivity
  • Fast 50Hz imaging
  • High resolution OLED display
  • Adjustable color palettes
  • Various reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 11 hours battery life (depending on model)
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty
Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 384 x 288

Base Magnification: 2× - 16× / 4.5× - 36×

FOV: 10.5° × 7.9° / 5.3° × 4.0°

Package Includes



  • Mount
  • Two Rechargeable Batteries
  • Battery Charger
  • USB Cable
  • Lens Cloth
  • Owners Manual
  • Carrying Case
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.


Specifications


Dimensions
241 × 73 × 67 mm (9.5 × 2.9 × 2.6 in)
Palettes
Black hot, White hot, Red hot, Fusion
Exit Pupil Diameter
6 mm
Reticle
10 types, 4 colors, on/off
Boresight Adjustment
Digital Controlled
Distance Measurement
Yes (Stadiametric)
Scene Mode
Cold, Warm
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes
Magnification
2× - 16× / 4.5× - 36×
Detector type
12μm VOx Uncooled Focal Plane Array
FFC (Flat Field Correction)
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
384 × 288
Detection Range (6' object)
1200 m/yd / 2600 m/yd
Lens system
25 mm; F0.8 / 50 mm; F1.0
NETD
Less than 20 mK (25°C, F# = 1.0)
Protection level
IP67
Field of view (H × X)
10.5° × 7.9° / 5.3° × 4.0°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +5 diopters
Focusing range
4 m to infinity / 10 m to infinity
Hot Track
Yes
Eye relief
45 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Capture Snapshot
Yes
Battery Type
Replaceable and Rechargeable Li-ion Battery
Wi-Fi
Yes
Battery Life (Operating)
≥ 11 h (25°C, hotspot off)
External power supply
5 VDC, 2 A, USB Type-C
Weight
0.75 kg (1.65 lb)
Package Includes
Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case

Product Specs

Magnification:3× - 24×

Palettes:Black Hot, White Hot, Red Hot, Fusion

Reticle:5 types, 4 colors, on/off

Boresight Adjustment:Digital Controlled

Boresight Increment:0.13 mil / 0.44 MOA

Distance Measurement

Yes (Stadiametric):Scene Mode

Jungle, Recognition:Picture In Picture Mode (PIP)

Yes:Video Recording

Yes:Defective Pixels Correction (DPC)

Yes:Uniformity Correction

Auto, Manual, External Correction:Digital Magnification

Detector type:12μm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)

Standby Mode:Yes

Resolution:384 × 288

Detection Range (6' object):1800 m/yd

Snapshot:Yes

Lens system:35 mm; F/1.0

Field of view (H × X):7.5° × 5.6°

Digital zoom:1×, 2×, 4×, 8×

Diopter adjustment range:-5 to +5 dpt

Eye relief:≥ 60 mm

Display:1024×768, 50 Hz, OLED

Storage:64 GB EMMC

Battery Type:Two 18650 Rechargeable Batteries (built-in) and one CR123 Battery

Wi-Fi:Yes

CVBS Output:Yes (via USB)

Battery Life (Operating):Up to 15 hr

Power supply:5 VDC/2 A, USB Type-C Supports QC3.0

Operating Temperature Range:-30°C to +55°C (-22°F to +131°F)

Degree of Protection:IP67

Weight:890 g ( 1.96 lb)

Overall Dimensions:407 × 78× 76 mm (16.0 × 3.1 × 3.0 in)
