AGM Global Vision  |  SKU: TAIP19-320-2

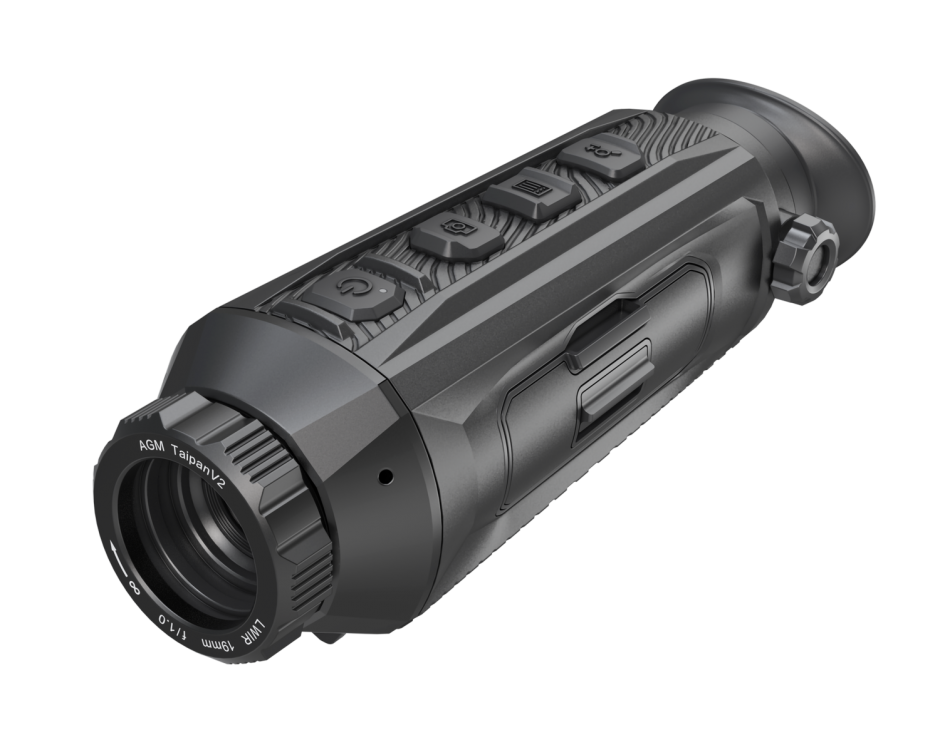

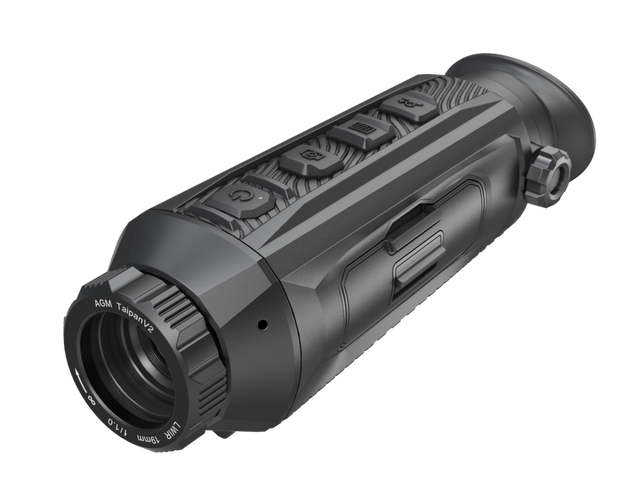

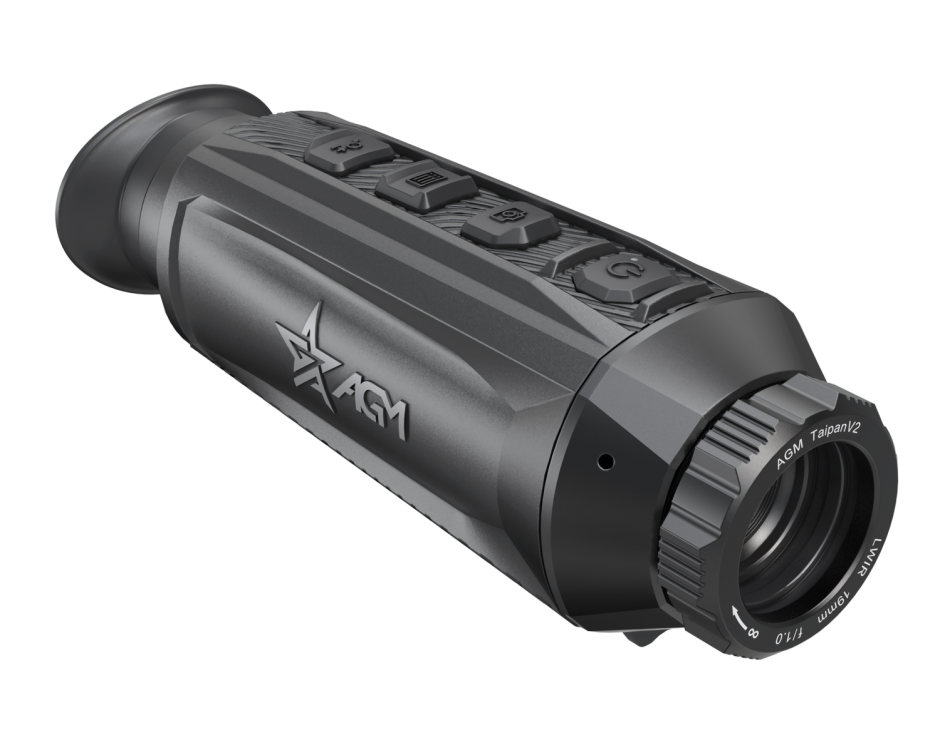

AGM Taipan V2 19-320 Thermal Imaging Monocular

$765.00 $845.00
Shipping calculated at checkout.

Product Specs

Palettes: Black Hot, White Hot, Red Hot, Fusion

Working Temperature: -20°C to 55°C (-4°F to 131°F)

Interface: USB Type-C

Pixel Interval: 12 μm

Multi Language menu: Yes

Drop Test Height: 1.5 m (4.9 feet)

Digital Magnification: 1x - 8x

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband: 8 μm to 14 μm

FFC (Flat Field Correction): Auto, Manual, External Correction

Highest Temperature Spot Tracking: Yes

Standby Mode: Yes

Refresh rate: Sensor 25 Hz / OLED 50 Hz

Aperture: F1.0

Resolution: 256×192

Detection Range (6' object): 460m/yd

NETD: Less than 35 mk (@25°C), F#=1.0

Lens (focal length): 10 mm

Power: 5 VDC/2 A, 1.5 W

Field of view (H × X): 18.00° × 13.55° (H × V)

Digital zoom: 1×, 2×, 4×, 8×

Monitor: 720×540, 0.2 inch, LCOS

Storage: Built-in memory module (8 GB)

Record Video: On-board video recording

Capture Snapshot: Yes

Battery Type: Built-in rechargeable Lithium battery

Wi-Fi: Yes

CVBS Output: Yes (via USB)

Battery Operating Time: Up to 8 hours continuous running (with Wi-Fi hotspot function off)

Battery Capacity Display: Yes

Weight: 260 g (0.57 lb)

Overall Dimensions: 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)

Protection Level: IP67

Magnification: 1x

Description

The AGM TaipanV2 Thermal Monocular series is the newest addition to what is already the most extensive thermal product assortment in the world! The TaipanV2 series boasts multiple objective lens sizes which are paired with an industry-leading 12 micron thermal detectors. The TaipanV2 also bring many new advancements to the product family which users have been clamoring for in the original Taipan monoculars. These primary improvements include moving from a non-removable rechargeable internal battery to a single removable rechargeable 18650, a new 320x256 thermal sensor and a new 90 degree tilt sensor which powers off the display to save battery life! The TaipanV2 also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: F1.0 aperture optics, 50Hz refresh rate, 16GB of built-in memory, Wi-Fi compatibility to pair with the AGM Connect App, an IP67 waterproof rating, USB Type-C port for external power capabilities and 4 color palettes. They also utilize a wider rubber eyepiece to make viewing the 1280 LCOS display extremely comfortable in the field when viewing for long periods of time in a single session.
The TaipanV2 are built for well-rounded use and would work great for hunting, farming/herd protection, law enforcement, search & rescue, boating, camping and other general outdoors activities. And of course, all TaipanV2 models will come with AGM’s 5 year transferable warranty.

Warning: California's Proposition 65


  • Upgraded sub-35mK 12 micron thermal detector
  • 320×256 resolution
  • 50 Hz image frame rate
  • Advanced image processing
  • 1280×960 resolution LCOS display
  • Built-in recording with sound
  • 16 GB memory module
  • Wi-Fi hotspot
  • Magnification - 3× - 22.5x
  • Auto screen off with tilt sensor
  • Replaceable and rechargeable Li-Ion battery
  • Up to 6 hours of battery life
  • External power supply capability
  • Rugged housing with rubber overmolding
  • Waterproof
  • Compatible with AGM Connect App
  • 5-year warranty
